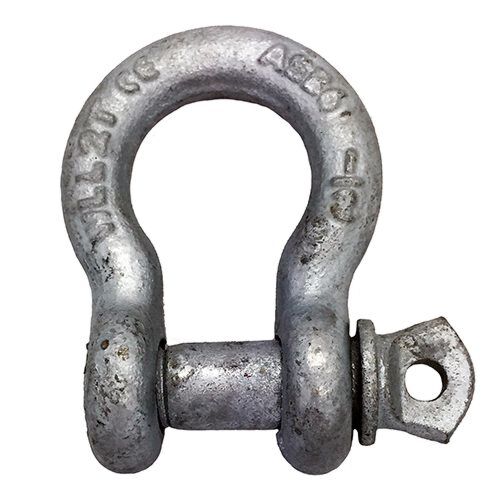

Galvanised Steel US Federal RR-C-271 Bow Shackles

These Bow Shackles meet US Federal RR-C-271 Specification and feature a screw pin and a WLL forged onto the shackle body

Drop forged galvanised for ultimate strength and durability. Tough and corrosion resistant, they are ideal for outdoor and maritime use

A range of sizes are available, in the following diameters: 6mm, 8mm, 10mm, 11mm, 12mm, 16mm, 18mm, and 22mm shackles available

In stock
Grouped product items
Product d (inches) D (inches) S (inches) W (inches) R (inches) SWL Tonnes PRICE Qty
6mm 0.50ton US Fed Bow Shackle 1/4" 5/16" 1-1/8" 15/32" 3/4" 0.50
£0.71 £0.59
8mm 0.75ton US Fed Bow Shackle 5/16" 3/8" 1-1/4" 17/32" 13/16" 0.75
£0.94 £0.78
10mm 1.00ton US Fed Bow Shackle 3/8" 7/16" 1-7/16" 21/32" 15/16" 1.00
£1.37 £1.14
11mm 1.50ton US Fed Bow Shackle 7/16" 1/2" 1-11/16" 23/32" 1-1/16" 1.50
£1.19 £0.99
12mm 2.00ton US Fed Bow Shackle 1/2" 5/8" 1-7/8" 13/16" 1-3/16" 2.00
£1.79 £1.49
16mm 3.25ton US Fed Bow Shackle 5/8" 3/4" 2-13/32" 1-1/16" 1-1/2" 3.25
£3.77 £3.14
18mm 4.75ton US Fed Bow Shackle 3/4" 7/8" 2-27/32" 1-1/4" 1-3/4" 4.75
£5.87 £4.89
22mm 6.50ton US Fed Bow Shackle 7/8" 1" 3-5/16" 1-7/16" 2" 6.50
£7.19 £5.99
25mm 8.50ton US Fed Bow Shackle 1" 1-1/8" 3-3/4" 1-11/16" 2-5/16" 8.50
£9.59 £7.99
28mm 9.50ton US Fed Bow Shackle 1-1/8" 1-1/4" 4-1/4" 1-13/16" 2-5/8" 9.50
£19.08 £15.90
30mm 12ton US Fed Bow Shackle 1-1/4" 1-3/8" 4-11/16" 2-1/32" 2-7/8" 12.00
£17.99 £14.99
Show Price without VAT
