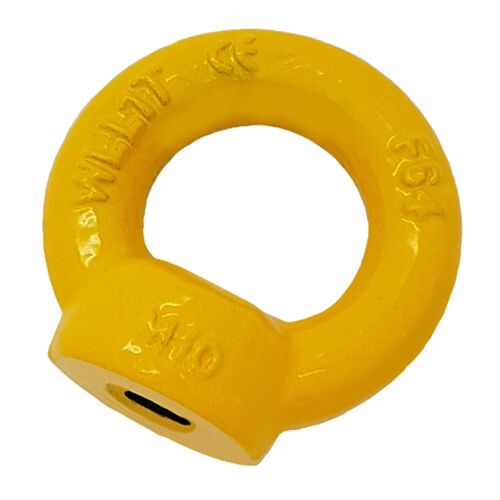

Grade 80 Eye Nuts DIN 582
Grade 80 lifting eye nut
Heat-treated with a high strength to weight ratio
M6 M8 M10 M12 M16 M20 and M24 internal metric threaded diameters available
Working Loads Stated are for vertical lift only - colour may vary
In stock
Download Product Data Sheet
Grade 80 DIN 582 Lifting Eye Nuts Technical Specifications:
- Suitable for lifting applications
- Sizes based generally on DIN 582 eye nuts
- W.L.L based on vertical lifts only
- Super alloy Grade 8 steel
- Temperature range -40°C up to +200°C
- Marked with W.L.L, material grade, CE and ID mark
- Fatigue rated x 1.5 Working Load Limit (W.L.L) for 20,000 cycles
- Proof tested - 2.5 times Working Load Limit
- 100% magnaflux crack detection
- Safety Factor 4:1 (breaking load is 4x the W.L.L)
- UK stock
- Comes supplied with relevant certificates

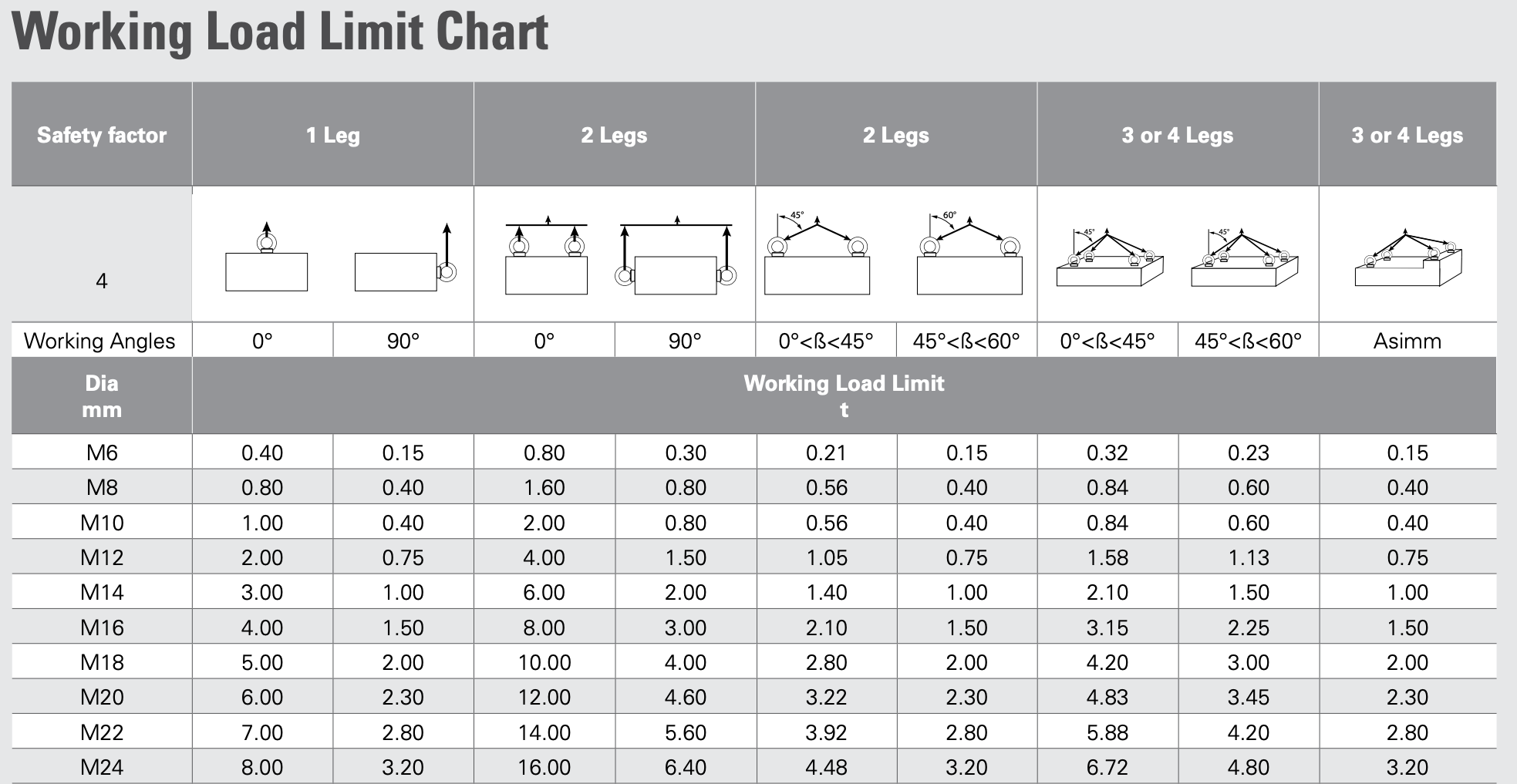

The below table shows working angles for our DIN 582 Grade 80 Eye Nuts
