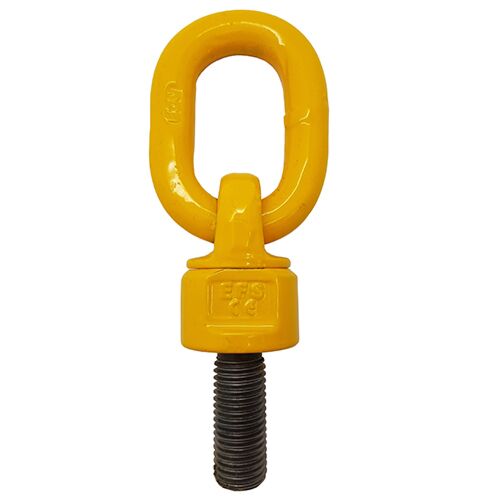

Grade 80 Swivel Lifting Point Eye Bolts - Load Rated

Grade 80 alloy steel swivel eye bolts

Comes with welded oval link and can turn multi-directional for lifting applications

These are tested to 2 times the working load limit - Factor of safety 4:1

In stock
Add to Wish List Add to Compare
main product photo
Grouped product items
Product A (mm) d (mm) L (mm) H (mm) D (mm) W (mm) W.L.L PRICE Qty
M10 x 18mm Swivel Eye Bolt 51 14 18 55 10 30 0.50t
£14.99 £12.49
M10 x 90mm Swivel Eye Bolt 51 14 90 55 10 30 0.50t
£19.79 £16.49
M12 x 18mm Swivel Eye Bolt 51 14 18 55 12 30 0.50t
£16.79 £13.99
M12 x 110mm Swivel Eye Bolt 51 14 110 55 12 30 0.50t
£20.99 £17.49
M16 x 40mm Swivel Eye Bolt 52 14 40 55 16 30 1.12t
£17.39 £14.49
M16 x 120mm Swivel Eye Bolt 52 14 120 55 16 30 1.12t
£22.79 £18.99
M20 x 30mm Swivel Eye Bolt 68 16 30 70 20 35 2.00t
£27.00 £22.50
M20 x 120mm Swivel Eye Bolt 68 16 120 70 20 35 2.00t
£35.39 £29.49
M24 x 40mm Swivel Eye Bolt 78 18 40 85 24 40 3.15t
£38.88 £32.40
M24 x 120mm Swivel Eye Bolt 78 18 120 85 24 40 3.15t
£46.20 £38.50
M30 x 35mm Swivel Eye Bolt 96.5 20 35 85 30 40 5.30
£59.40 £49.50
M30 x 120mm Swivel Eye Bolt 96.5 20 120 85 30 40 5.30
£81.60 £68.00
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet



Grade 80 Swivel Eye Bolt Technical Specifications:

  • Suitable for lifting applications
  • Not suitable for rotation under load
  • Super alloy Grade 8 steel
  • Temperature range -40°C up to +200°C
  • Marked with W.L.L, material grade, CE and ID mark
  • Fatigue rated x 1.5 Working Load Limit (W.L.L) for 20,000 cycles
  • Proof tested - 2.5 times Working Load Limit
  • 100% magnaflux crack detection
  • Safety Factor 4:1 (breaking load is 4x the W.L.L)
  • UK stock
  • Comes supplied with statement of conformity certificate

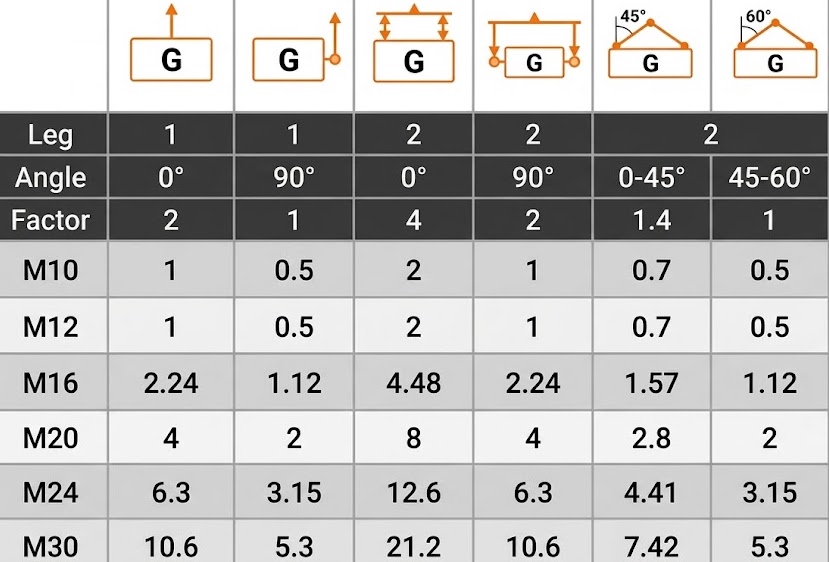

Grade 80 Swivel Eye Bolt Working Load Limit Chart
