PACK OF 25 - KL100 Zip-Clip Rize Steel Wire Rope Grip (1.5mm - 2.3mm Wire)

In stock
SKU: KL100-25
Model Number KL100
Suits Wire  1.5mm - 2.3mm
W 26mm
L 18mm
SWL 50kgs

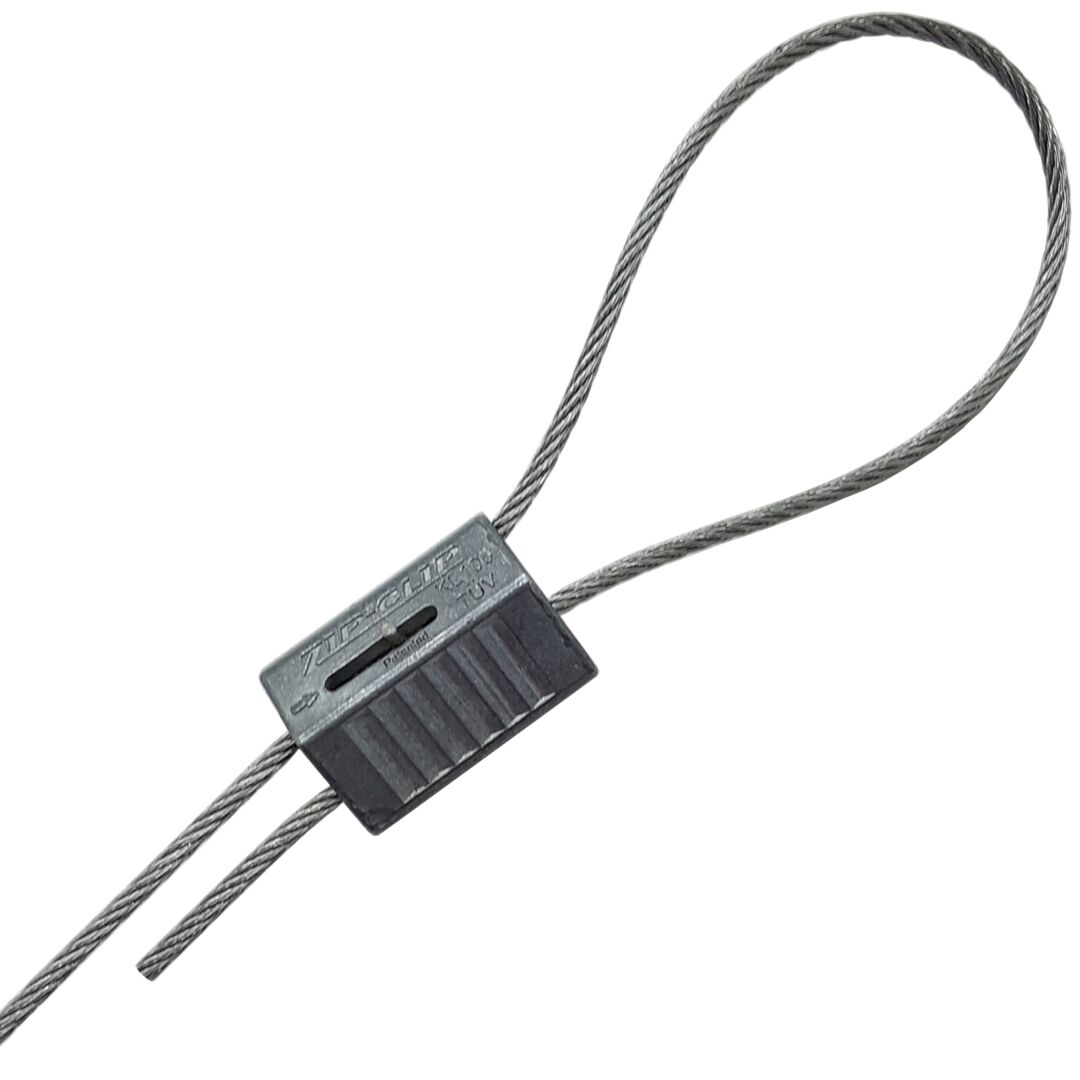

Check out this key free, easy release system Zip-Clip Rize steel wire rope grip. It's suitable for use with galvanised steel wire rope and can be re-used.

Perfect for use with a variety of tasks, these wire rope grips can be used with steel works, I beams or purlins.

These wire rope grips are ideal for suspended lengths of HVAC, electrical, signage and many more applications where a quick and secure wire grip is required.

SWL stated load is only valid when used with Zip-Clip branded steel wire ropes only.

Value pack of 25 units

Show Price without VAT
£40.20 £33.50

Installation guide

  • Cut wire to desired length for the drop required
  • Pass one end of the wire through the zip-clip in the direction of the arrow on the Zip-Clip Rize body and draw through enough wire to go around your fixing point
  • Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
  • At the other end again pass the wire through the zip-clip in the direction of the arrow
  • Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
  • Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated

Zip-Clip drawing
