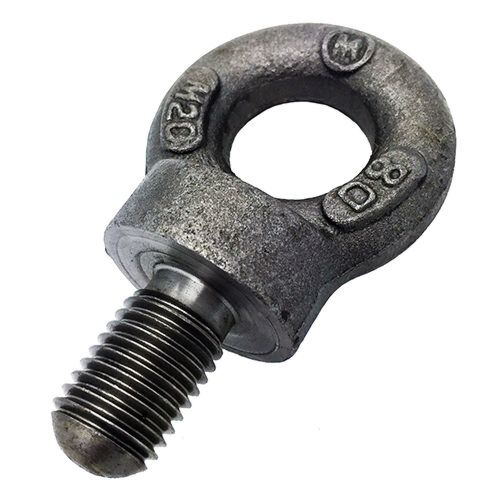

Self Colour Collared Lifting Eye Bolts - Load Rated

Take a look at the range of self colour lifting collared eye bolts available from the Wire Rope Shop.

The safe working load is shown on each eye bolt body at 0° (vertical) angle of lift.

Available in 10mm, 12mm ,16mm, 20mm, 24mm, and 30mm metric diameter threads.

In stock
Add to Wish List Add to Compare
main product photo
Grouped product items
Product A (mm) B (mm) H (mm) E (mm) F (mm) G (mm) SWL (Kgs) PRICE Qty
10mm Eye Bolt M10 22 18 15 9 20 250
£1.55 £1.29
  • Buy 50 for £1.49 £1.24 each
  • Buy 100 for £1.43 £1.19 each
12mm Eye Bolt M12 22 18 15 9 20 400
£1.66 £1.38
  • Buy 50 for £1.58 £1.32 each
  • Buy 100 for £1.54 £1.28 each
16mm Eye Bolt M16 29 23 20 12 26 800
£2.12 £1.77
  • Buy 50 for £1.97 £1.64 each
  • Buy 100 for £1.84 £1.53 each
20mm Eye Bolt M20 40 32 27 16 36 1600
£3.98 £3.32
  • Buy 50 for £3.84 £3.20 each
  • Buy 100 for £3.70 £3.08 each
24mm Eye Bolt M24 52 40 35 21 46 2500
£7.06 £5.88
  • Buy 50 for £6.78 £5.65 each
  • Buy 100 for £6.38 £5.32 each
30mm Eye Bolt M30 65 51 44 26 58 4000
£14.28 £11.90
  • Buy 50 for £13.68 £11.40 each
  • Buy 100 for £12.96 £10.80 each
Show Price without VAT
Download Product Data Sheet Download Product Data Sheet

Collared Lifting Eye Bolt Key Features

✔ Supplied with statement of conformity certificate

✔ Self colour (non-plated) finish

✔ Standard metric thread

✔ Meets the performance requirements of BS 4278

✔ 5:1 factor of safety (minimum breaking load is 5x the Working Load Limit)

✔ CE, batch number and SWL clearly marked on hook for full traceability

❌ Never exceed the eye bolts SWL

❌ Stated SWL is for vertical lifts only
