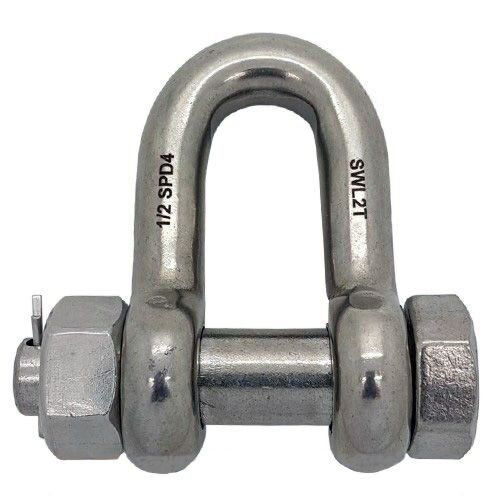

Stainless Steel Safe Working Load Rated Dee Shackles - Safety Pin

A4 - AISI 316 Marine Grade Load Rated D Stainless Steel - Polished Finish

D Shaped Shackle Body with Type 'E' Safety Pin with Nut Excellent for lifting purposes

4:1 Factor of Safety, the Safe Working Load is marked on the Dee Shackles Body

0.75ton, 1ton, 2 ton, 3ton, 4 ton, 5ton and 6ton SWL's available

In stock
Grouped product items
Product A (mm) B (mm) H (mm) D (mm) E (mm) C (mm) F (mm) G (mm) SWL (Kgs) PRICE Qty
0.75 Ton Shackle 7.5 10 50 7.5 15 20 27 49 750
£3.41 £2.84
1 Ton Shackle 9.5 12 63 9.5 17 24 32 60 1000
£4.79 £3.99
2 Ton Shackle 12 16 74 12 20 31 41 77 2000
£9.59 £7.99
3 Ton Shackle 15 20 100 15 27 39 54 111 3000
£21.59 £17.99
4 Ton Shackle 18 21 111 18 34 43 60 111 4000
£28.79 £23.99
5 Ton Shackle 21 24 123 21 37 48 69 125 5000
£41.99 £34.99
6 Ton Shackle 24 27 141 24 46 55 75 138 6000
£59.99 £49.99
Show Price without VAT
