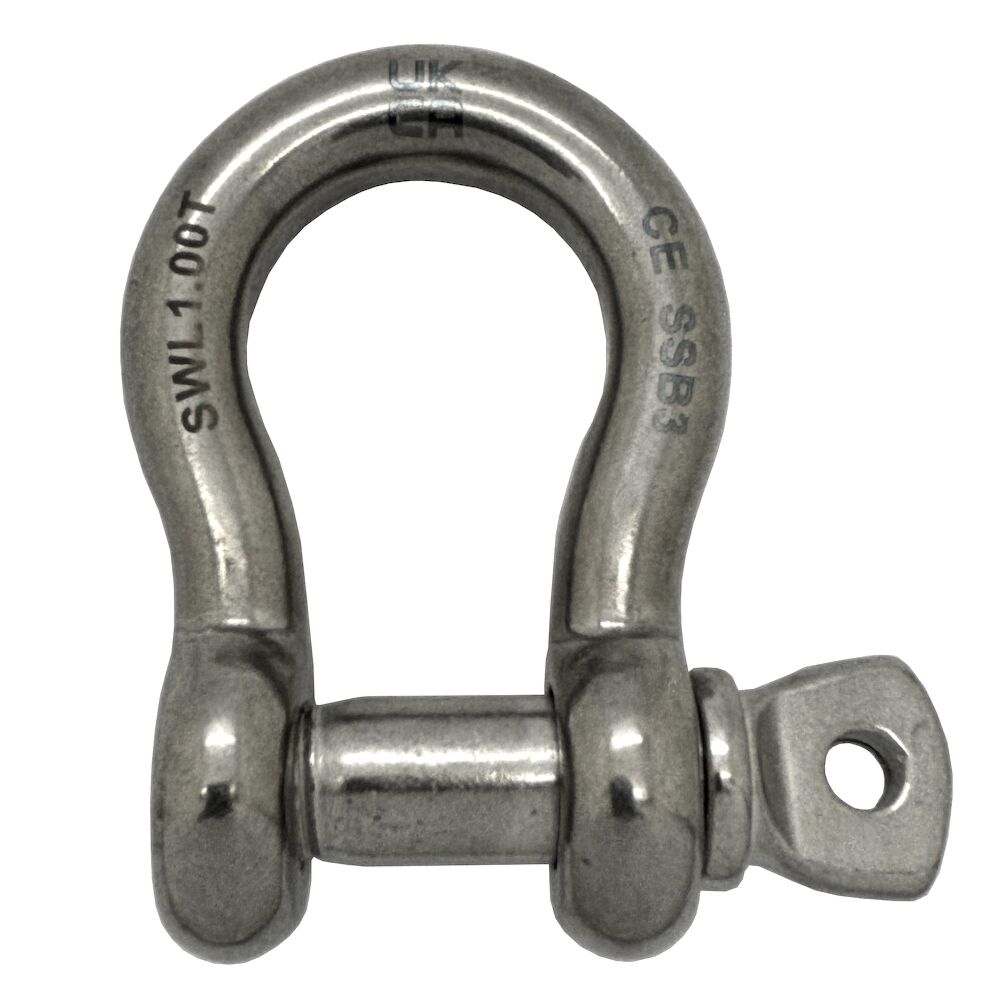

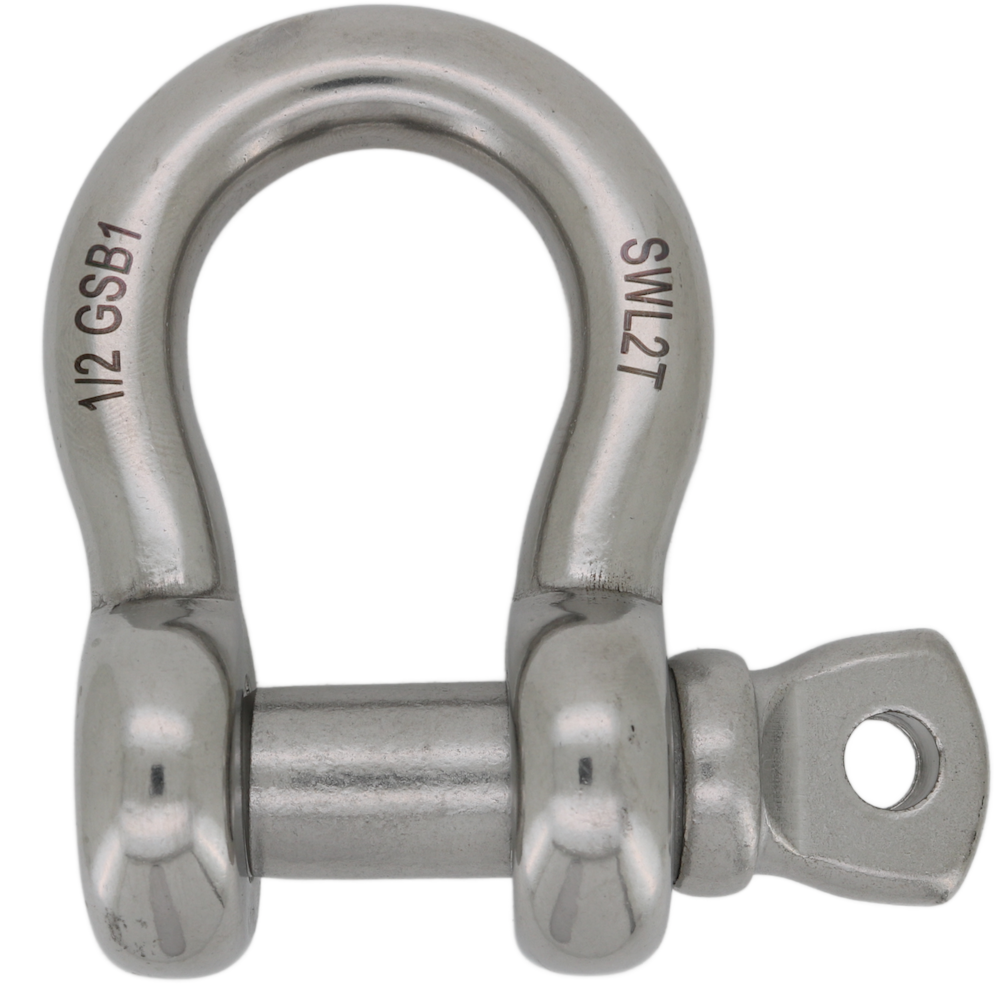

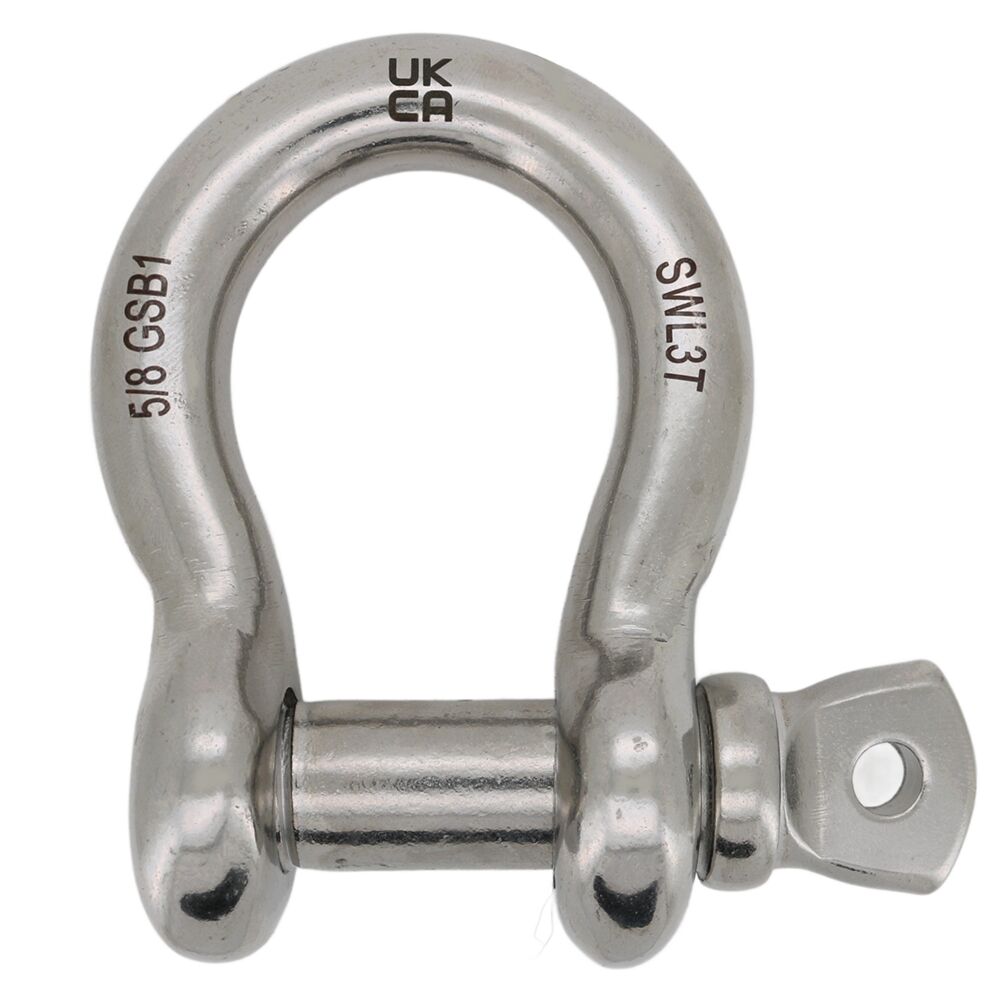

Stainless Steel Safe Working Load Rated Bow Shackles - Screw pin

GS Products offer A4 - AISI 316 marine grade stainless steel lifting bow shackles with screw pin.

They are supplied with a totally removable screw pin.

These bow shackles can be used for a variety of lifting purposes.

Each shackle has a safe working load (SWL) marked on the body, there is also a batch code for traceability and a UKCA marking for full conformity.

0.33 ton, 0.5 ton, 0.75 ton, 1 ton, 2 ton, 3 ton, 4 ton, 5 ton and 6 ton SWLs available from UK stock. Order yours online today.

In stock

Grouped product items
Product	d (mm)	D (mm)	R (mm)	W (mm)	S (mm)	SWL Tonnes	PRICE
0.33 Ton Bow Shackle	5	6	16	9	23	0.33	£1.67 £1.39
0.50 Ton Bow Shackle	6	8	20	12	27	0.50	£3.35 £2.79
0.75 Ton Bow Shackle	7.5	10	21	14	31.5	0.75	£3.56 £2.97
1.00 Ton Bow Shackle	9.5	12	26	17	38.5	1.00	£3.70 £3.08
2.00 Ton Bow Shackle	12	16	34	22	50	2.00	£7.07 £5.89
3.00 Ton Bow Shackle	15.5	19.5	43	28	60	3.00	£11.99 £9.99
4.00 Ton Bow Shackle	18	21.5	54	32	75	4.00	£22.79 £18.99
5.00 Ton Bow Shackle	21	25	58	38	86	5.00	£29.99 £24.99
6.00 Ton Bow Shackle	24	28	67	45	95	6.00	£44.99 £37.49

Show Price without VAT
