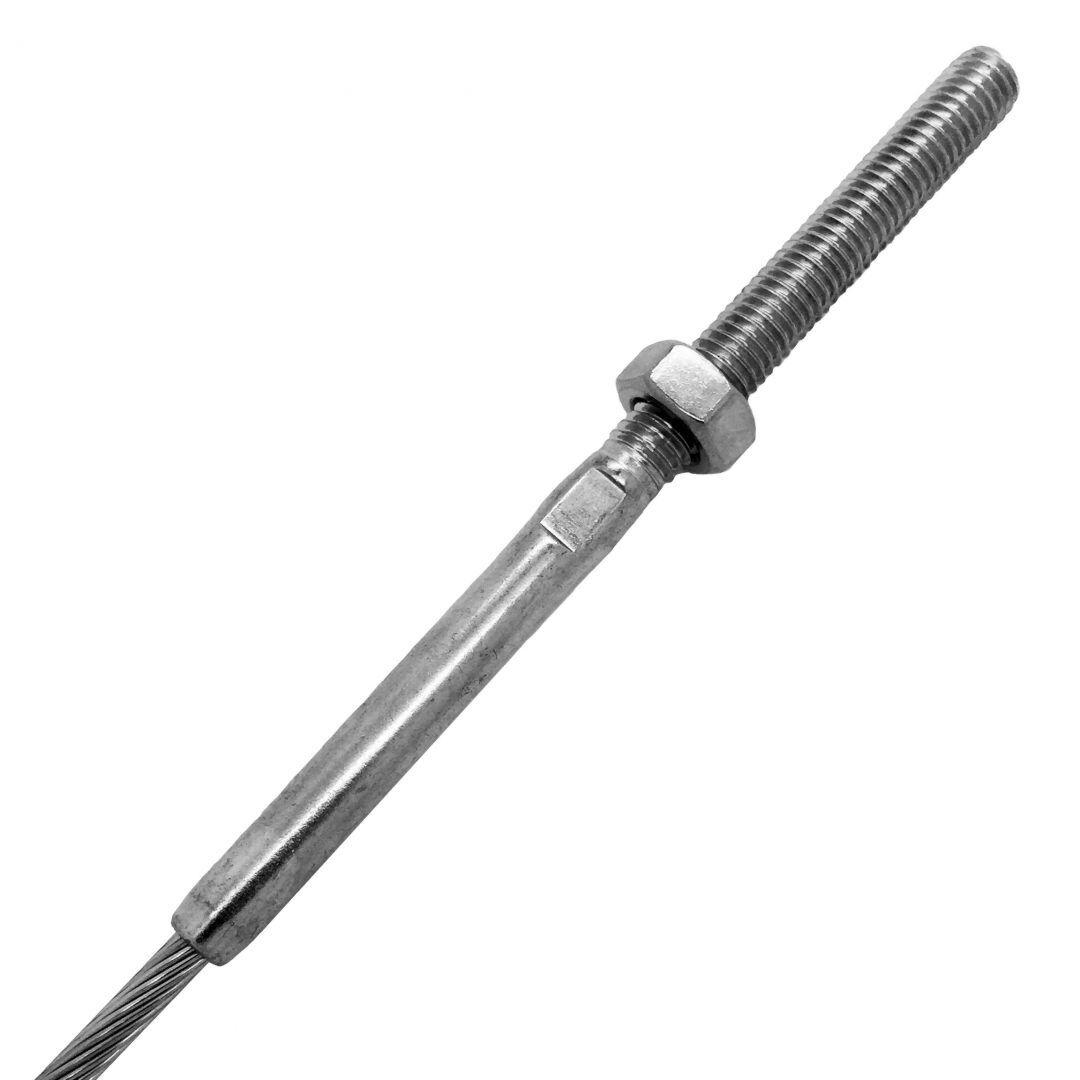

Stainless Steel Wire Rope Swage Stud Terminals - Right Handed

We offer a wide range of swage-stud fittings. Manufactured from A4-AISI 316 marine grade stailess steel, these terminals are very popular.

Featuring a polished finish, these terminals are reliable and corrosion-resistant, ideal for use in the creation of wire rope balustrade systems with steel posts amongst other applications.

These fittings come with one hex nut included. They also require hydraulic crimping onto your steel wire rope, tools for which are also available on our site if required.

These swage stud terminals have a right-handed metric course thread and are manufactured to suit 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm and 12mm diameter wire rope.

Left-handed stud versions are also available.

In stock
Grouped product items
Product A (mm) L (mm) D (mm) G (mm) L2 (mm) L1 (mm) Suit Wire Diameter (mm) PRICE Qty
2mm Stainless Steel Swage Stud Terminal (M4 Stud) 2.3 73 4.5 5 30 38 2
£1.34 £1.12
2mm Stainless Steel Swage Stud Terminal (M4 Stud) 2.5 73 4.5 5 30 38 2.5
£1.34 £1.12
3mm Stainless Steel Swage Stud Terminal (M6 Stud) 3.3 80 6.35 6 32 40 3
£1.37 £1.14
4mm Stainless Steel Swage Stud Terminal (M8 Stud) 4.2 102 7.5 8 40 52 4
£1.66 £1.38
5mm Stainless Steel Swage Stud Terminal (M10 Stud) 5.2 130 9 10 57 63 5
£2.27 £1.89
6mm Stainless Steel Swage Stud Terminal (M12 Stud) 6.75 142 12.5 12 63 68 6
£3.59 £2.99
8mm Stainless Steel Swage Stud Terminal (M16 Stud) 8.35 175 13 16 76 89 8
£9.59 £7.99
10mm Stainless Steel Swage Stud Terminal (M16 Stud) 11 210 13 16 80 100 10
£10.79 £8.99
12mm Stainless Steel Swage Stud Terminal (M20 Stud) 13 245 16 20 85 120 12
£15.59 £12.99
Show Price without VAT

The swage stud fittings are very popular, commonly used when making a steel wire balustarde system with steel posts

Pictured below is a 4mm swage stud fitting screwed directly into a 42.5mm diameter post, the holes have been tapped out and these swage studs have been directly screwed in, the nut then will act as a locking nut against the post

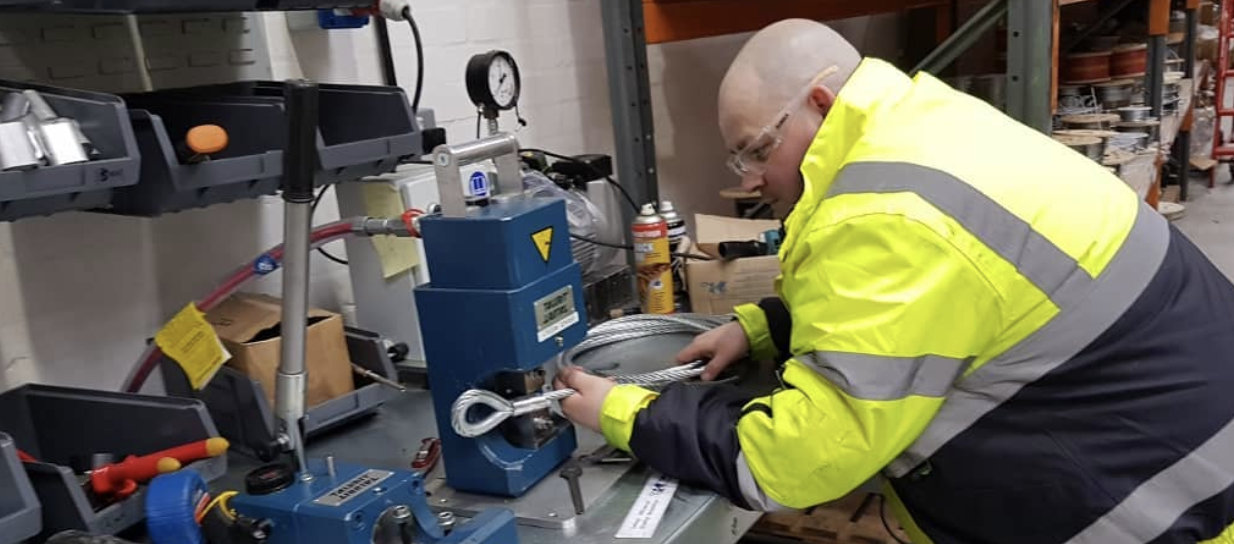

Steel wire rope rigging service

If you would like us to swage your steel wire rope fittings for you please get in touch for a quote or you can use our wire rope builder page below to order online
