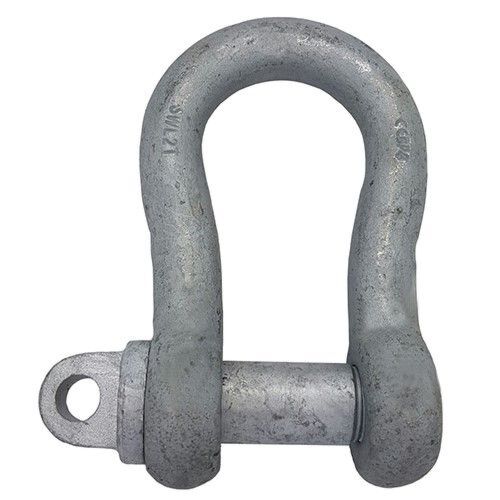

Galvanised Large Bow Shackles BS 3032

Large hot dipped galvanised steel bow shackle manufactured to BS 3032 standard - Type A Pin

Made from high tensile C1045 steel with a 4:1 factor of safety

Marked with WLL Limit on the Shackle Body

In stock
Grouped product items
Product D (inches) E (inches) WLL (tonnes) A (inches) B (inches) C (inches) PRICE Qty
3/8" Shackle 1-5/8" 1" 0.45 3/8" 1/2" 5/8"
£3.22 £2.68
1/2" Shackle 2-1/8" 1-1/4" 0.75 1/2" 5/8" 7/8"
£4.08 £3.40
5/8" Shackle 2-3/4" 1-1/2" 1.25 5/8" 3/4" 1-1/8"
£6.74 £5.62
3/4" Shackle 3-3/8" 1-3/4" 2.00 3/4" 7/8" 1-3/8"
£11.21 £9.34
7/8" Shackle 3-7/8" 2" 2.75 7/8" 1" 1-5/8"
£13.92 £11.60
1" Shackle 4-1/4" 2-1/4" 3.75 1" 1-1/8" 1-3/4"
£18.43 £15.36
1-1/8" Shackle 4-7/8" 2-1/2" 4.75 1-1/8" 1-1/4" 2"
£28.51 £23.76
1-1/4" Shackle 5-3/8" 2-3/4" 5.75 1-1/4" 1-3/8" 2-1/4"
£35.54 £29.62
1-3/8" Shackle 6" 3" 7.25 1-3/8" 1-1/2" 2-1/2"
£62.14 £51.78
Show Price without VAT
