Stainless Steel Wire Rope Balustrade Ball and Curved Socket System

Easy to use, this ball and socket adjustable steel wire rope system is suitable for 4mm diameter steel wire rope and 42.4mm diameter round balustrade posts. A4 / AISI 316 stainless steel with a high polished finish offers maximum corrosion resistance.

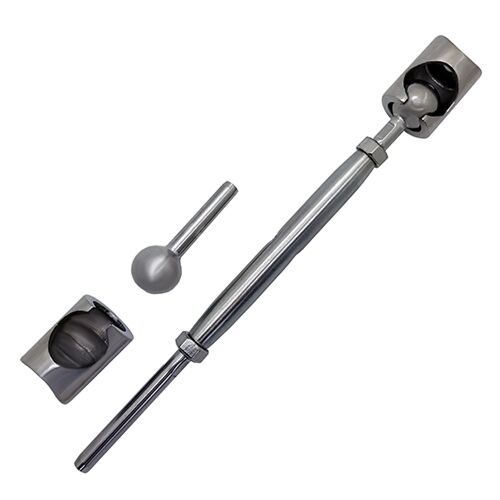

With this kit you get:

  • 2 x curved sockets with fixing screws
  • 1 x swage ball terminal
  • 1 x swage adjuster with ball terminal
  • 2 x M6 x 20mm fixing screws
  •

Curved mounting sockets allow sleek attachment to your 42.4mm steel balustrade posts. The swage ball end and swage ball adjuster easily interlock with the sockets and create a stunning finish. This system allows 35 degrees of articulation for any inclines on your wire system.



In stock
Grouped product items
Product A (mm) B (mm) L (mm) D (mm) R (mm) D3 (mm) M (mm) L2 (mm) L1 (mm) PRICE Qty
Ball and Socket Kit 20 38 105 25 42.4 6.5 8 31 190
£29.99 £24.99
Show Price without VAT
