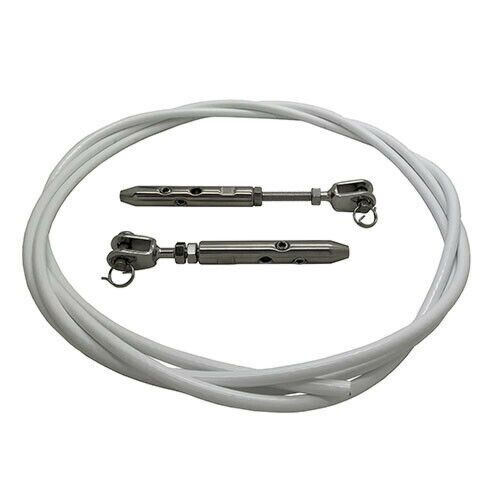

5 Meter Stainless Steel Wire Rope Guard Wire Kit

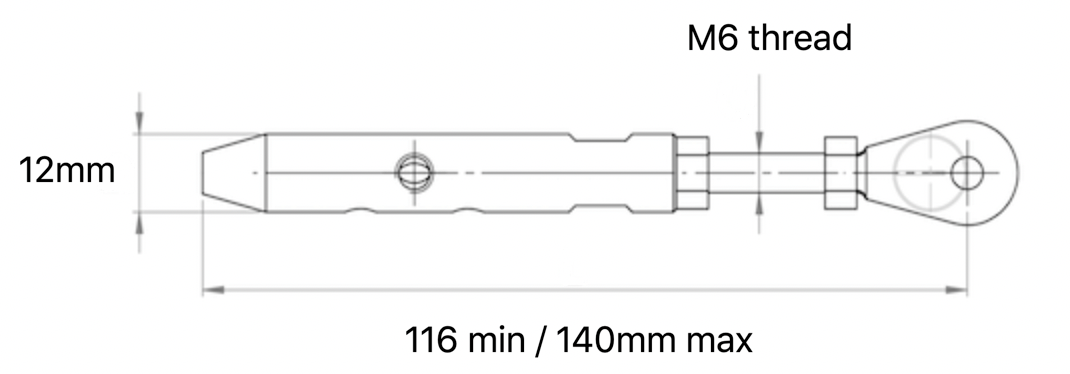

• The thread can be screwed out to create tension
• Jaw has a 7.5mm clearance with a removable clevis pin

Fitting instructions

• Strip 40mm of the PVC coating off the end steel wire rope using a sharp blade
• Attach the fitting to the end of the wire and tighten down the 3 grub screws using a 3mm allen key (not supplied)
• Use our steel wire rope cutters to cut the guard rail to your exact length
• Repeat the process on the opposite end
