Stainless Steel Rigging Screws Jaw and Wire Rope Swage Stud

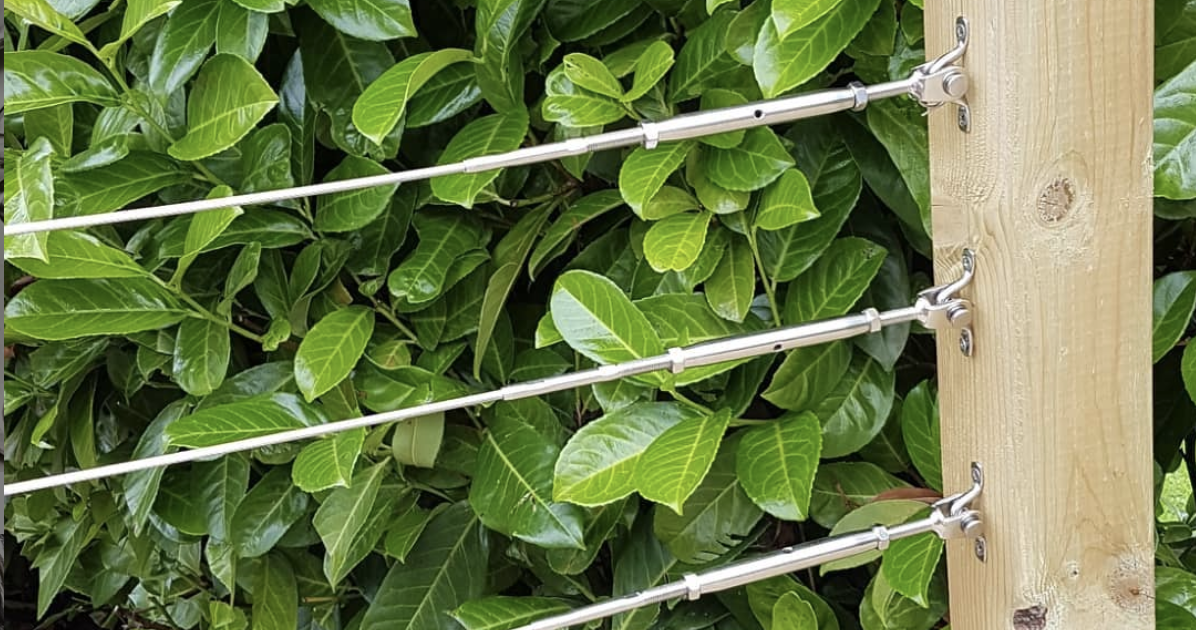

A4 - AISI 316 stainless steel wire rope balustrade rigging screws to attach steel wire rope

Your steel wire rope slots into the swage end and then needs to be hydraulically swaged, the other end has a jaw connector which has a removable clevis pin

These tensioners are very popular and important to have in your wire balustrade system to keep your line taught

PLEASE MAKE SURE to double check that you are buying the correct rigging screw to suit your wire rope diameter

In stock
Grouped product items
Product A (mm) L (mm) H (mm) D (mm) D1 (mm) D3 (mm) L1 (mm) To Suit Rope Breaking Load (Kgs) PRICE Qty
4mm 6.5 68 8 4 4 4.5 170 2mm 500
£4.79 £3.99
6mm 7.5 90 10 6 6 3.2 175 3mm 1500
£4.79 £3.99
8mm 11 105 11 8 8 4.3 205 4mm 3000
£8.15 £6.79
10mm 12 125 14 9 10 5.3 230 5mm 4300
£10.19 £8.49
12mm 14 150 21 12 12 6.3 285 6mm 6500
£16.55 £13.79
16mm 17 190 26 16 16 8.3 375 8mm 9500
£47.99 £39.99
Show Price without VAT

Please double check your are buying the correct swage / jaw rigging screw to suit your steel wire rope diameter
