Balustrade Steel Wire Rope Swage Rigging Screw & Fixing Strap

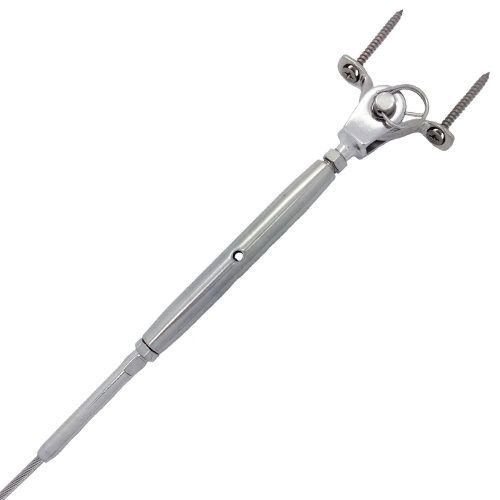

A4-AISI 316 grade stainless steel balustrade rigging screw with fixing strap

This system suits 3mm, 4mm and 5mm diameter steel wire rope balustrade

Suitable for timber post steel wire infill balustrade systems

In stock
Grouped product items
Product A (mm) L (mm) H (mm) D (mm) D3 (mm) L1 (mm) To Suit Rope Breaking Load (Kgs) PRICE Qty
6mm 7.5 90 10 6 3.2 175 3mm 1500
£5.39 £4.49
8mm 11 105 11 8 4.3 205 4mm 3000
£7.79 £6.49
10mm 12 125 14 9 5.3 230 5mm 4300
£11.75 £9.79
Show Price without VAT

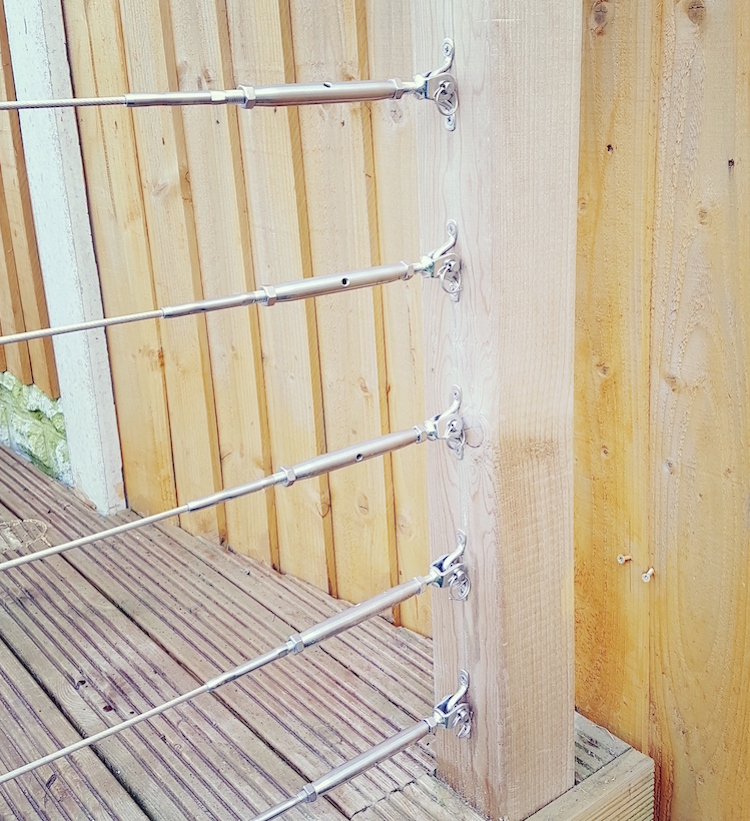

 Below shows how an adjustable rigging screw with lacing eye strap fixes to a timber post:

adjustable rigging screw with lacing eye strap attached to a timber post
