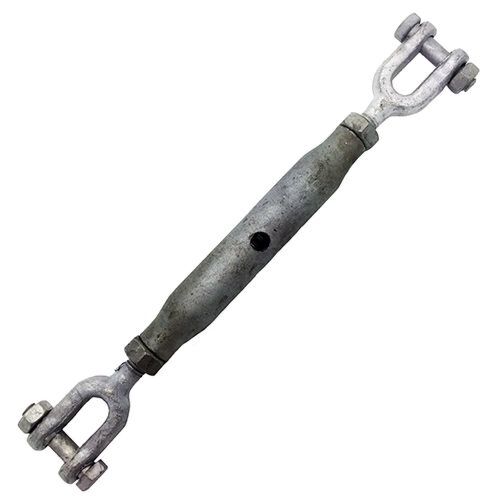

Galvanised Rigging Screws Jaw/Jaw

Hot dipped galvanised steel rigging screw with jaw and jaw ends

Come complete with locking nuts to secure once in place, these traditional rigging screws are commonly used with boat rigging, yachting and any application where a tensioner is required

Both jaws come with removable clevis pins

These rigging screw have opoosite handed threads so both end screw outwards or inwards at the same time, simply rotate the central body

Avaibale in diameters 6mm-24mm

In stock
Grouped product items
Product A (mm) B (mm) L (mm) D (mm) L1 Open (mm) L1 Closed (mm) SWL (Kgs) PRICE Qty
6mm Galvanised Rigging Screw Jaw/Jaw 9 21 100 6 254 178 150
£3.83 £3.19
8mm Galvanised Rigging Screw Jaw/Jaw 9 21 127 8 305 203 200
£4.10 £3.42
10mm Galvanised Rigging Screw Jaw/Jaw 11 19 152 10 349 235 300
£4.90 £4.08
12mm Galvanised Rigging Screw Jaw/Jaw 15 35 229 12 524 343 500
£7.07 £5.89
16mm Galvanised Rigging Screw Jaw/Jaw 22 51 229 16 550 381 750
£15.07 £12.56
20mm Galvanised Rigging Screw Jaw/Jaw 22 48 229 20 550 387 1200
£24.10 £20.08
22mm Galvanised Rigging Screw Jaw/Jaw 25 63 305 22 702 476 1700
£28.20 £23.50
24mm Galvanised Rigging Screw Jaw/Jaw 32 63 359 24 822 556 2200
£44.16 £36.80
Show Price without VAT
