Stainless Steel Wire Rope Grips DIN 741

Manufactured from A4 AISI 316 marine grade stainless steel with a polished finish, these grips are capable of resisting corrosion and are a durable, long-term grip solution.

Available in 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 19mm and 25mm diameters.

We recommend 3 steel wire rope grips per end.

Please note these are sized on a like for like basis. If you are working with 3mm diameter wire rope, for example, adnd you wish to create a loop by threading two wires through the grip, a 3mm diameter wire rope grip will be sufficient for this.

Priced individually, please order the exact amount needed for your project.

In stock
Grouped product items
Product Pack Quantity A (mm) D (mm) B1 (mm) B2 (mm) H1 (mm) H2 (mm) Suit Wire Diameter (mm) PRICE Qty
2mm Rope Grip 1 10 M3 4 10 17 10 2
£0.59 £0.49
3mm Rope Grip 1 10 M4 4 10 21 10 3
£0.82 £0.68
4mm Rope Grip 1 13 M4 6 11 23 13 4
£0.79 £0.66
5mm Rope Grip 1 13 M5 7 11 26 11 5
£0.92 £0.77
6mm Rope Grip 1 16 M5 8 13 30 11 6
£0.98 £0.82
8mm Rope Grip 1 19 M6 10 14 36 16 8
£1.19 £0.99
10mm Rope Grip 1 21 M8 12 18 44 16 10
£2.33 £1.94
13mm Rope Grip 1 26 M10 15 23 56 22 13
£3.79 £3.16
16mm Rope Grip 1 31 M12 19 26 64 26 16
£5.86 £4.88
19mm Rope Grip 1 37 M12 22 29 76 30 19
£7.14 £5.95
25mm Rope Grip 37 M14 28 29 76 37 68 25
£11.99 £9.99
Show Price without VAT






A simple guide on how to use and fit your steel wire rope grips

  • Din741, Din1142 and US Federal Steel Wire Rope Grips should be spaced six wire rope diameters apart to give adequate holding power (eg. 5mm wire rope = 30mm distance between grips)
  • We recommend a minimum of 3 grips per end
  • They should be tightened before the rope is placed under tension
  • After the load is placed on the wire rope, tighten the clamps again to take care of any lessening in rope diameter caused by tension of the load
  • Regularly check the nuts ensuring they are still fastened tightly
  • The Wire Rope Grips are sized like for like, eg. If you have 5mm wire rope then buy 5mm grips, each grip allows that diameter of wire to pass through twice to form a loop
  • It is generally accepted that you should achieve 50% of the wire rope breaking load as a guide to holding power

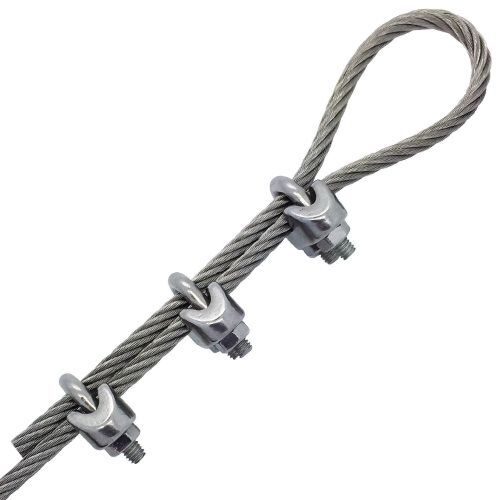

Please take note of the above image, the dead end of the wire (cut end) should always be at the top, the live end should always be at the bottom on the saddle.
